Period
1997–2000
Client
Tehran Regional Electricity Company
Location
Tehran Province
Stage
Final Handover
Technical Specifications:

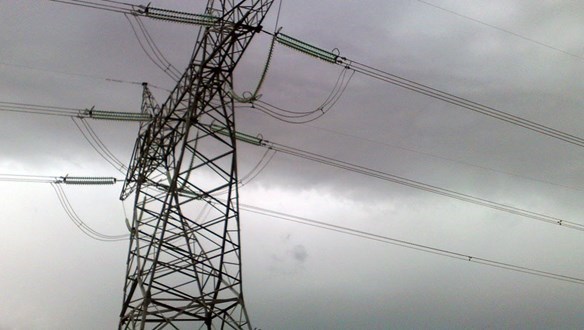

• Line type: 63/400 kV quadruple-circuit, double-voltage transmission line
• Tower weight: 116 tons/km
• Tower height: 65 m
• Number of conductors and shield wires per tower: 26
• Foundation volume: 46 m³ per tower, 128 m³ per km
• Due to specific execution conditions, this project is considered unique in its category.
Moshanir responsibility:
Execution of all engineering phases including design, preparation of required technical specifications, supervision of construction, and performance testing.
Special Achievements
By utilizing multi-circuit transmission lines, optimal use of the allocated right-of-way for the overhead line was achieved, ensuring efficient land utilization and enhanced network capacity.
